The SP056060 high-speed slip ring supports 60 circuits and operates over 15,000 RPM with gold-gold contacts. Long-life design ensures reliable signal and power transmission for aerospace, wind tunnel testing, industrial R&D, and high-speed rail applications.
Technical parameters
|
Electrical specifications
|
|
Design loop
|
60
|
|
Insulation resistance
|
500MΩ/500V/DC
|
|
Rated voltage/current
|
500VDC/1A
|
|
Dielectric strength
|
≥500VAC/50Hz/60s
|
|
Dynamic resistance change value
|
≤50mΩ
|
|
Mechanical specifications
|
|
Rated speed
|
>15000 rpm
|
|
Working life
|
50 million circle
|
|
Operating temperature
|
-10℃ ~35℃
|
|
Contact material
|
Gold-gold
|
|
Shell material
|
Alluminum alloy
|
|
Humidity
|
20%～80%
|

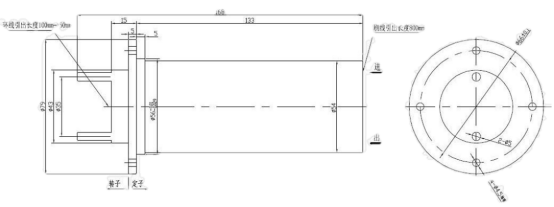

Outline Drawing
Applications:
-
High-speed testing platforms for aircraft engines
-
Automotive wheel hub performance and drivetrain testing
-
High-speed rail component testing
-
Strain gauge and thermocouple signal acquisition
-
Robotics and UAV payloads
-
Laboratory and industrial precision measurement systems
Technical advantages:
ü Slipring's core technology - friction pair technology: gold metal contact technology, ensuring an ultra long service life.
ü Integrated casting process: Ensure the concentricity between the ring groove and the bearing is ≤ 0.01mm.
ü Mirror processing technology: Ensure that the smoothness of the slip ring contact surface can reach Ra0.02, making the contact more reliable.
ü Precision component manufacturing process: dimensional tolerance<0.01mm, high precision, and more stable performance.
ü Advanced brush wire modulation technology: Nearly zero pressure brush design and debugging process, extending the life of the slip ring by 1/3.
ü Small in size and compact in structure, it can meet the space constraints of users.
ü The slip ring adopts a solid aluminum alloy metal structure with strong sealing performance, suitable for extremely harsh environments.
ü High speed, this slip ring has been tested and verified to have a speed of up to 15000 revolutions per minute.
ü Long lifespan, customizable with a lifespan of 150 million revolutions per minute.
